MaxSeal In-Glass Pet Door

SKU:
SB-MaxSeal-In-Glass
$218.99 - $631.99
(4 reviews)
Current Stock:

MaxSeal® In-the-Glass Pet Doors

MaxSeal® In Glass dog door

Through Glass Dog Door | Pet Door for Glass Doors | Sliding Glass Pet Door

In-the-Glass models are offered for those customers wanting to install a high quality pet door through glass...primarily sliding glass doors. This type of installation requires very highly skilled Glass Glazier. This type of application is very attractive to those customers who do not wish to install a pet door through a door or wall. The installation of the MaxSeal through glass, is often reversible as well. Your professional Glazier can provide you with details and various options. All Security Boss products are hand built to order.
Note: Light Ivory has been discontinued.

Using 1" Adapter
Using 1/2" Adapter
Fits glass 1/4" to 13/16" thick
Fits glass 7/8" to 1 1/2" thick
Special Ranges: Single Flap In-Glass models can fit 1/8" & 3/16" glass thickness enter glass thickness when ordering & select 1" adapter

The MaxSeal® In-the-Glass model pet door is designed to provide you the ultimate performance in pet doors. All parts are maintainable making these doors the last pet doors you will buy. Flaps are easily replaced by the customer (Unlike other brands).


Note: You have the option of a 1" or 1/2" Adapter when order the In-the-Glass MaxSeal® doors.

Reference
Size
Pet Opening
Flap Size
Notch in Glass Required
width x height
PRICES
Single Flap
Dual Flap
Small
6" x 7.5"
9 5/8" x 10 13/16"
$218.99
$236.99
Small / Medium
7" x 9"
10 5/8" x 12 5/16"
$227.99
$249.99
Medium
9" x 12"
12 5/8" x 15 5/16"
$246.99
$272.99
Large
11" x 16"
14 5/8" x 19 5/16"
$290.99
$343.99
Tall
11" x 20"
14 5/8" x 23 5/16"
$337.99
$400.99
Tall Grand
11" x 25"
14 5/8" x 28 5/16"
$391.99
$444.99
XL Grand
12" x 24"
15 5/8" x 27 5/16"
$426.99
$496.99
Wide Tall
15" x 20"
18 5/8" x 23 5/16"
$459.99
$529.99
Mammoth
15" x 24"
18 5/8" x 27 5/16"
$489.99
$570.99
Behemoth
15 3/4" x 32"
19 3/8" x 35 5/16"
$552.99
$631.99



In-the-Glass Pet Door Installation



Manufacturers Note: The MaxSeal In-the-Glass Model Pet Door is designed to be installed by professional glass glaziers that have experience installing pet doors into glass. For this reason, this product is only sold under the assumption that a professional will be installing this product. It is NOT designed for the homeowner, handyman or building contractor to install.

MaxSeal Frame Color Options
MaxSeal Security Panel Options
Note: The Black Security Panel has a Black interior as shown above, the exterior is white to reflect sunlight and heat.
The White Security Panel is White on both sides.






Security Boss Manufacturing LLC - Best Pet Doors by Design

Pricing Starts at: $218.99

Security Boss® In-the-Glass Pet Doors

Installation Guidelines

Security Boss ® In-the-Glass Model Pet Door should only be installed by a professional in the glass industry. Security Boss® does not guarantee any installation of our pet doors. The uniqueness of the installation situation make it imperative that you work only with professionals that have experience and are bonded. As the manufacturer of the In-the-Glass Model Pet Door, we warranty the pet door only, not the medium that it is installed.


Through the glass pet door installation for sliding glass doors

Overview - Basic guidelines for installing a MaxSeal Pet Door ® in Sliding Glass Doors.

Please note that there are many types of sliding glass doors. This guide is to be used for "standard" type sliding glass doors*. The installation process involves replacing an existing Insulated Glass (IG) Unit with a new "custom" IG unit that will be "notched" or cut in one of the bottom corners where the MaxSeal Pet Door® will be installed. Once installed, the sliding glass door will operate as intended with full sliding functionality and use of the existing door lock.

*Standard - the glass goes into the molding of the door by 1/2 inch (glass is covered by 1/2 inch of molding). This will not be the same for all doors because of glass door make, model, material and molding variables. Objectives:

1. Glass Measure
2. MaxSeal Pet Door® Installation
3. Remove existing Insulated Glass (IG) Unit
4. Install a new IG Unit
5. Install MaxSeal Pet Door


Glass Measure - (On Site with Customer - ALWAYS)

Tools Needed
-glass check tool
-calipers
-tape measure
-putty knives or 5 way tool


1. Determine what pane of glass to install the pet door

2. Determine what side of the chosen pane (right/left) to install the pet door

3. Measure the actual glass width and height

4. Measure total glass thickness (glass check tool)

In-the-Glass Pet Door Installation

5. Determine if IG unit has tint or LOW-E (glass check tool)

6. Determine the type of ADAPTER (this is in the IG unit and used to mold the two panes of glass together to form the IG unit)

7. Determine the size of Pet Door needed based on the pet size and the distance from the bottom pet door flap to floor.
(Note: A correct pet opening will be large enough to clear the shoulders of the largest pet using the door. Remember the pet door will rest on the bottom frame of the sliding door).

Sizing Example: If your pet is 21 inches tall to the shoulder and there is a 3 inch distance from the floor to the bottom of the pet door flap then the top pet door flap will be at a height of 24 inches. Take this into account when choosing your size pet door. In this instance we could use the TALL Pet Door 11x20 because of the 3 inch gain.

8. Determine "notch" dimensions based on the pet door size (Notch - when a new IG unit is ordered you must include the cut out (notch) measurements for the glass fabrication.
For "Standard" sliding glass door applications - add 1/4 inch to the tip-to-tip measure of the MaxSeal Pet Door for rough cut (glass notch).

Example: For the TALL door (11x20) Exterior Frame (14 3/8" x 23 1/16")
add 1/4 inch for the notch dimension (14 5/8" x 23 5/16")


Pet Door
Size

Pet
Opening

Notch Dimension
in Glass

Small
6" x 7.5"
9 5/8" x 10 13/16"
Small/Medium
7" x 9"
10 5/8" x 12 5/16"
Medium
9" x 12"
12 5/8" x 15 5/16"
Large
11" x 16"
14 5/8" x 19 5/16"
Tall
11" x 20"
14 5/8" x 23 5/16"
Tall Grand
11" x 25"
14 5/8" x 28 5/16"
XL Grand
12" x 24"
15 5/8" x 27 5/16"
Wide Tall
15" x 20"
18 5/8" x 23 5/16"
Mammoth
15" x 24"
18 5/8" x 27 5/16"
Behemoth
15 3/4" x 32"
19 3/8" x 35 5/16"


9. Order new IG unit from local glass fabrication company based on actual glass measurements, total glass width, notch measurements, adapter type, Low-E and tint requirements.

NOTE:When IG Unit fabrication is complete (5-10 days) you are ready to install.

MaxSeal Pet Door Installation

Tools
Razor knife
putty knives
levels
drop cloths
chisel
5 Way Tool
drill
hammer
reciprocating saw
pencil
silicone sealant
Phillips & Standard screwdrivers


1. Depending on the type of slider, you may have to remove the panel from the door frame (locate and take out plastic stoppers) and lift the panel out or you may be able to remove the IG Unit without lifting the panel out.

In-the-Glass Pet Door Installation

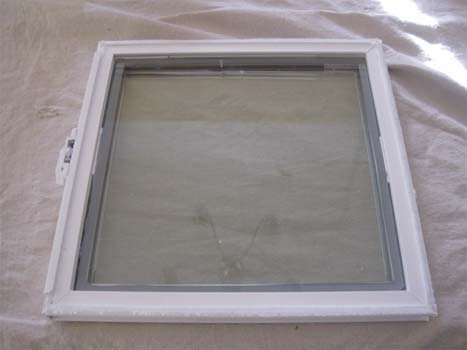

Figure 1: Panel removed from the door frame

2. Locate the removable molding (may be on the inside or outside of panel) and remove from all sides. Typically you can loosen the molding with a putty knife / 5 Way tool by sliding the tool under the molding or between the molding and door frame. Twist with caution not to damage the molding, as you will reuse this for the new IG Unit. Once loosened, pry the molding off.

In-the-Glass Pet Door Installation

Figure 2: Molding removed

3. Remove the IG Unit - Once the molding is out, the IG Unit is held into place by silicone on the opposite side of the molding. Use a putty knife to pry between the IG Unit and the panel frame all the way around the IG Unit to break the silicon seal in order to remove the IG Unit.

In-the-Glass Pet Door Installation

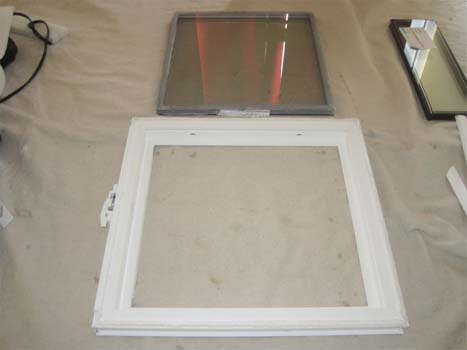

Figure 3: IG Unit removed from the door panel

4. Install new IG Unit into the door panel - use silicone sealant and apply only on surface of panel that the new IG Unit will have contact with.

In-the-Glass Pet Door Installation

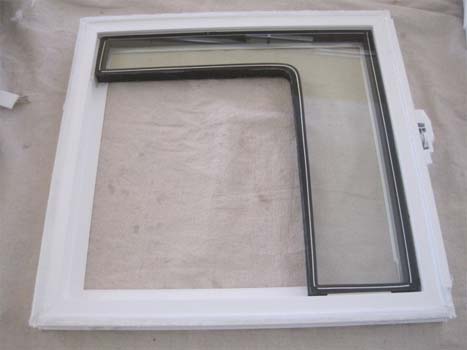

Figure 4: New IG Unit installed in door panel

5. Install the removed molding on all sides

In-the-Glass Pet Door Installation

Figure 5: Molding installed

6. Install "IN FILL BARS" into the gaps where the IG Unit does not make contact with the panel frame. The IN FILL BARS will be the same total thickness of IG unit (i.e. 1 inch) by desired length. These are cut on site.

In-the-Glass Pet Door Installation

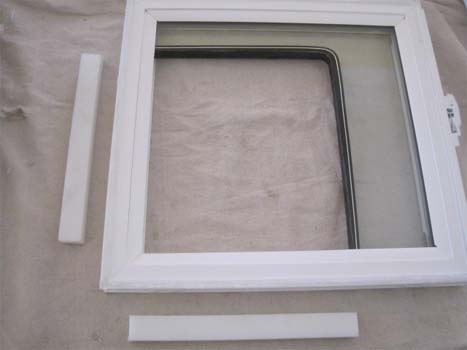

Figure 6: IN FILL BARS cut to length

7. Install IN FILL BARS to panel frame with silicone sealant

In-the-Glass Pet Door Installation

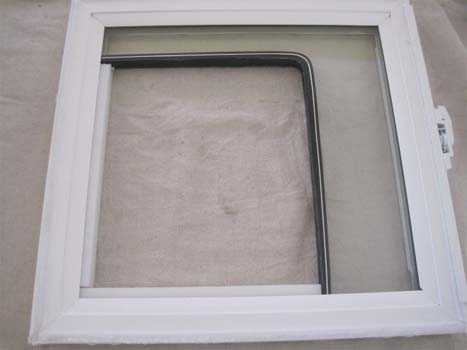

Figure 7: IN FILL BARS installed

8. Put the interior pet door frame (the one with the insulated security panel) into the rough opening in the "people" door. Notice the clearance between the pet door interior frame and the glass on the IG Unit. This gap is necessary as the edges of the IG Units are extremely fragile and will break if the metal from the door comes into contact with the glass.

In-the-Glass Pet Door Installation

Figure 8: Gap clearance between the pet door and the glass

9. Snap the outside frame into the MaxSeal door and sleeve the pet door frame together. 10. Using the pre-drilled pilot holes and supplied drill bit and insert one screw. Make sure the door is level. When level, tighten the inserted screw. Affix the remaining screws into place using the pilot holes as guides.

(Security Boss Manufacturing LLC has included One-Way Security Screws as well as Phillips head screws to give customers a Tamper-proof option in their door installation)

Important Note: Use a short screw (5/8 inch) for the pilot hole on the glass side to prevent the screw from hitting the glass!! Standard screws can be used for the remaining pilot holes.

In-the-Glass Pet Door Installation

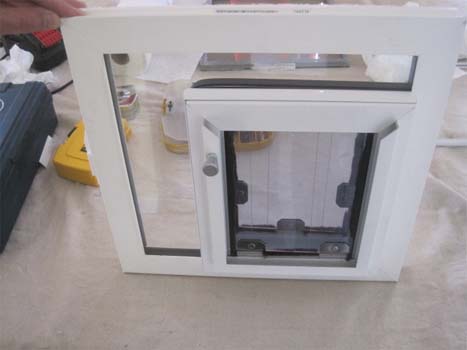

Figure 9: MaxSeal Pet Door installed into door frame

11. Once the pet door is installed you can fill any gaps and seal the edges with silicone sealant.
12. Install the door panel into the door frame, ask the customer not to use the pet door for 2 hours to allow the silicone to set.

In-the-Glass Pet Door Installation

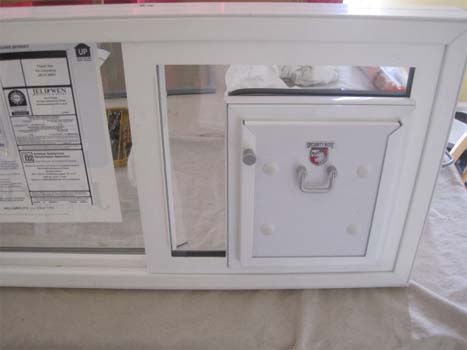

Figure 10: Panel installed in frame

13. Your slider will open and close as designed with the pet door installed

In-the-Glass Pet Door Installation

Figure 11: Open slider with the pet door


Manufacturers Note: The MaxSeal In-the-Glass Model Pet Door is designed to be installed by professional glass glaziers that have experience installing pet doors into glass. For this reason, this product is only sold under the assumption that a professional will be installing this product. It is NOT designed for the homeowner, handyman or building contractor to install.


If you are interested in learning more about partnering with Security Boss as an Installer, please contact us at Installer / Retail Program
